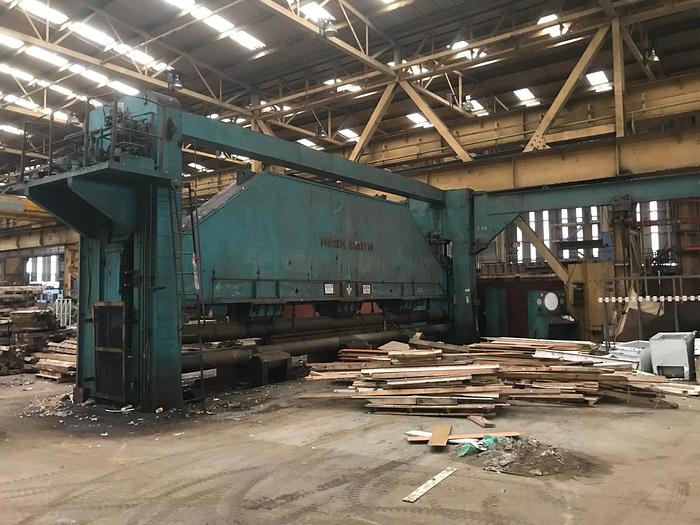

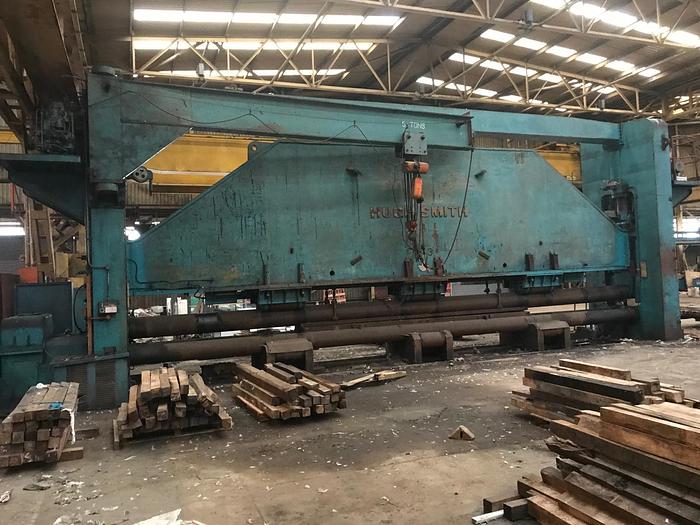

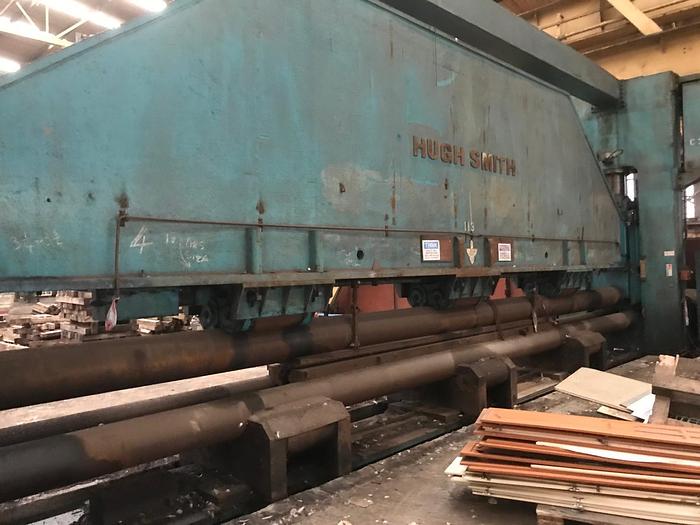

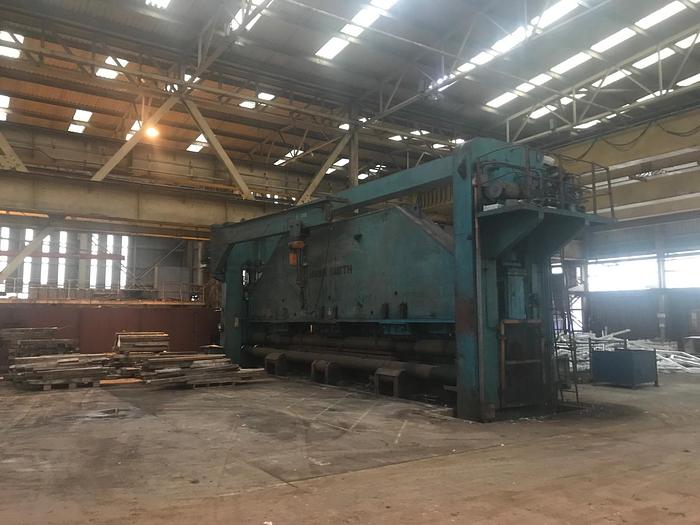

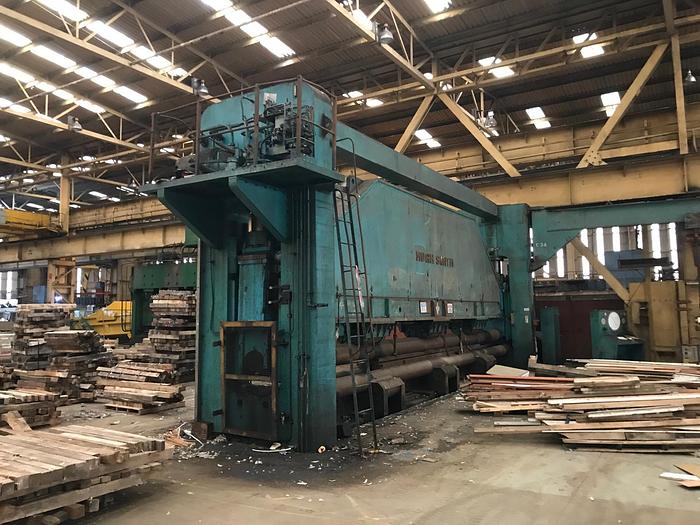

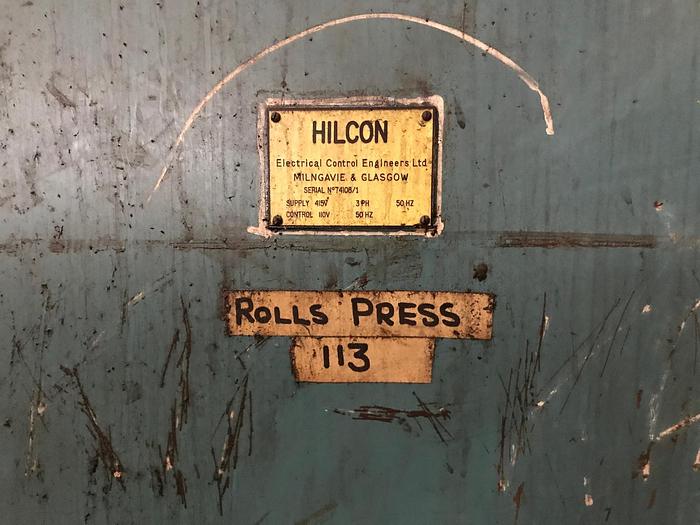

Hugh Smith 10.7m x 600 ton/24mm plate thickness Shipyard Roll Press, Plate Rolling and Bending Machine

Hugh Smith 600 Ton Hyudraulic Shipyard Roll Press

Maximum Plate width 10.7m (35ft)

Maximum Plate thickness 10.7m x 26mm @ 1.5m Radius

6m x 28mm

3m x 38mm

Plate Bending to 90 degrees 10.7m x 16mm

6m x 19mm

3m x 24mm

Operating Pressure : 4500 Psi.

Pilot Pressure for Controls : 300 psi.

Wedge Pump Pressure : 4500 Psi.

Operating Speeds : Press : 0.173 in/sec.

                                 Return : 1.210 in/sec.

                                 Plate Rolling Speed : 14 ft/min.

Roller Size : Top : 350mm Ø x 10.7m

                     Bottom : 300 Ø x 10.7m

Min/Max Centres of Bottom Rollers : 355/560 mms.

Min/Max Radius of Bending : 18/60 in.

Hydraulic Pumps Type & Capacity :

2 Nos Main Pumps : Towler Hydraulics.

Maximum Flanging Pumps : Towler Hydraulics.

1 No Wedge Pumps : Towler Hydraulics (Motor common to Main Pump).

Hydraulic Tank Capacities : 60 Gallons Each.

Overall Dimensions : 16.31 x 3.15 x 7m

Approximate Weight of the Machine : 110 Tons.

Motor Details : Bottom Rollers Motors (2 Nos) – Make : The English Electric Co.,Ltd.

HP – 35/Kw – 26.25 ,Volts : 440, Amps : 51, RPM : 725,3 Ph 50 c/s Induction Motor

Top Roller Hydraulic Pump Motors (Left and Right) Make : The English Electric Co.,Ltd.

HP – 15,Kw – 11.25, Volts : 440,, Amps : 20, RPM : 1445, 3 Ph 50 c/s (Induction Motor).

Bottom Rollers: Center Adjusting Motors (2 Nos).

Make : The English electric Co.,Ltd.

H P -3/kw : 2.25, Volts : 440, Amps : 4.5, RPM : 1415,3 Ph 50 c/s.

Oil Cooling Pump Motors : Make : Newman.

H P – 1,kw – 0.75,Volts – 440,Amps : 1.5, RPM : 1425,3 Ph 50 c/s

Note : the dimension of the Machine is (Lx B x H) : 15 Meter x 2.5 Meter x 11 Meter.The Machine is approx 3.5 Meter below the ground level and 7.5 Meters above the Ground level).
